Download Details

Features of Board Viewer

  • PCB/Panel/Footprint data can be referred.
  • Display on/off and color of each layer can be specified.
  • The order of the display of each layer can be specified.
  • Visible Layer Group can be configured.
  • Display "Mirror View" is supported.
  • The display color of each signal can be specified.
  • Data can be searched by Signal name, Reference Designator and Terminal in PCB data.
  • Detailed information on data can be referred.
  • The distance between the data can be measured.
  • Distance between two points can be measured using the Ruler tool.
  • Add, delete or move the text comments in Board Viewer.
  • One PCB data file can be referred to from multiple Board Viewers simultaneously.

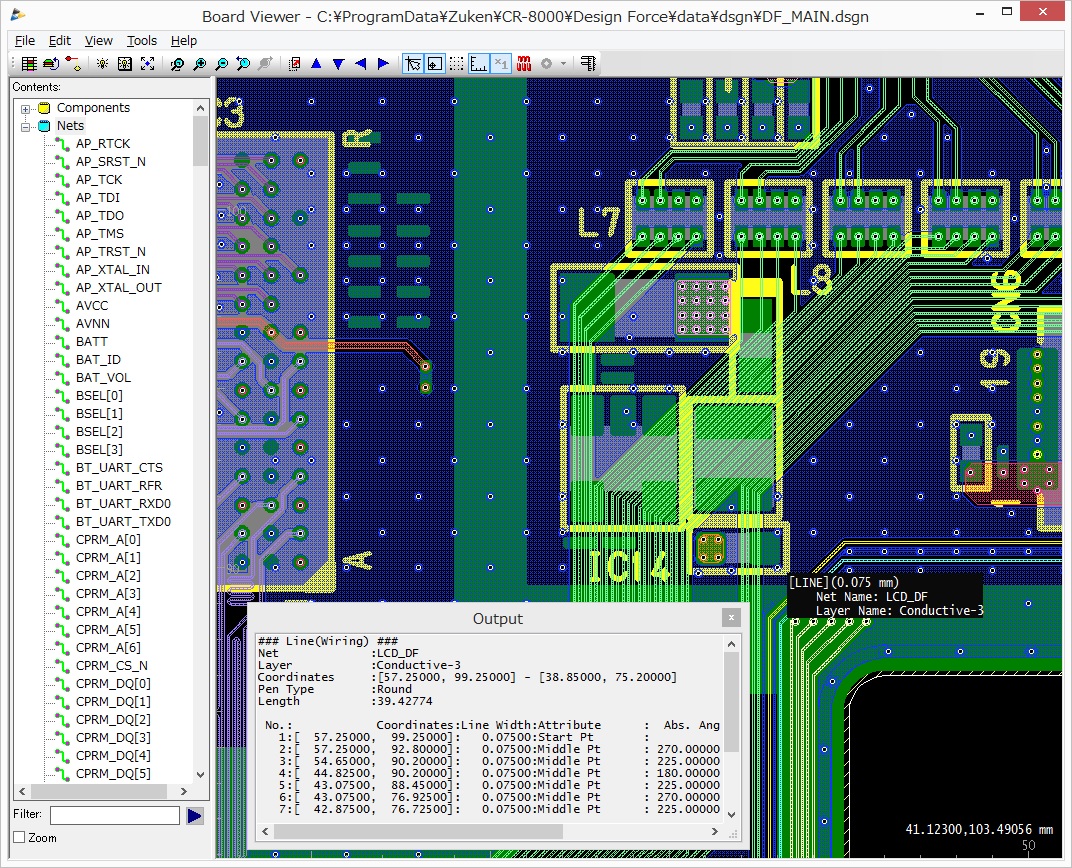

Board Viewer snapshot

System Configuration

The following configuration is required.

OS
  • Windows 11 Enterprise (64bit)
  • Windows 11 Pro (64bit)
  • Windows 11 Pro for Workstations (64bit)
  • Windows 11 Home (64bit)
  • Windows 11 Education (64bit)
  • Windows 10 Enterprise (32bit/64bit)
  • Windows 10 Pro (32bit/64bit)
  • Windows 10 Pro for Workstations (64bit)
  • Windows 10 Home (32bit/64bit)
  • Windows 10 Education (32bit/64bit)
CPU Intel Core i5 or later, or its equivalent (Intel Core i7 or later, or its equivalent is recommended)
RAM
  • [Windows 11] 4 GB or more (8 GB or more recommenced)
  • [Windows 10] 1 GB or more (2 GB or more recommenced)
Virtual memory System recommended value
Hard disk 50MB free space or more
Display 1024 x 768 screen resolution or more,
16bit High Color / 32768 colors or more
Supported Version of data
Board Designer
  • 2024.xxx
  • 2023.xxx
  • 2022.xxx
  • 2021.xxx
  • Rev.22.xxx
  • Rev.21.xxx
  • Rev.20.xxx
  • Rev.19.xxx
  • Rev.18.xxx
  • Rev.17.xxx
  • Rev.16.xxx
  • Rev.15.xxx
  • Rev.14.xxx
  • Rev.13.xxx
  • Rev.12.xxx
  • Rev.11.xxx
  • Rev.10.xxx
  • Rev.9.xxx
  • Rev.8.xxx
  • Rev.7.xxx
Design Force
  • 2024.xxx
  • 2023.xxx
  • 2022.xxx
  • 2021.xxx
  • 2020.xxx
  • 2019.xxx
  • 2018.xxx
  • 2017.xxx
  • 2016.xxx
  • 2015.xxx
  • 2014.xxx
  • 2013.xxx
  • 2012.xxx
Components Editor
  • 2024.xxx
  • 2023.xxx
  • 2022.xxx
  • 2021.xxx
  • 2020.xxx
  • 2019.xxx
  • 2018.xxx
  • 2017.xxx
  • 2016.xxx
  • 2015.xxx
  • 2014.xxx
DFM Center
  • 2024.xxx
  • 2023.xxx
  • 2022.xxx
  • 2021.xxx
  • 2020.xxx
  • 2019.xxx
  • 2018.xxx
  • 2017.xxx
  • 2016.xxx
  • 2015.xxx
  • 2014.xxx
  • 2013.xxx
  • 2012.xxx
  • Rev.5.0
  • Rev.4.0
DFM Inkjet
  • 2024.xxx
  • 2023.xxx
  • 2022.xxx
  • 2021.xxx
  • 2020.xxx
  • 2019.xxx
  • 2018.xxx
  • 2017.xxx
  • 2016.xxx
  • 2015.xxx
  • 2014.xxx
  • 2013.xxx
  • 2012.xxx
  • Rev.1.3
